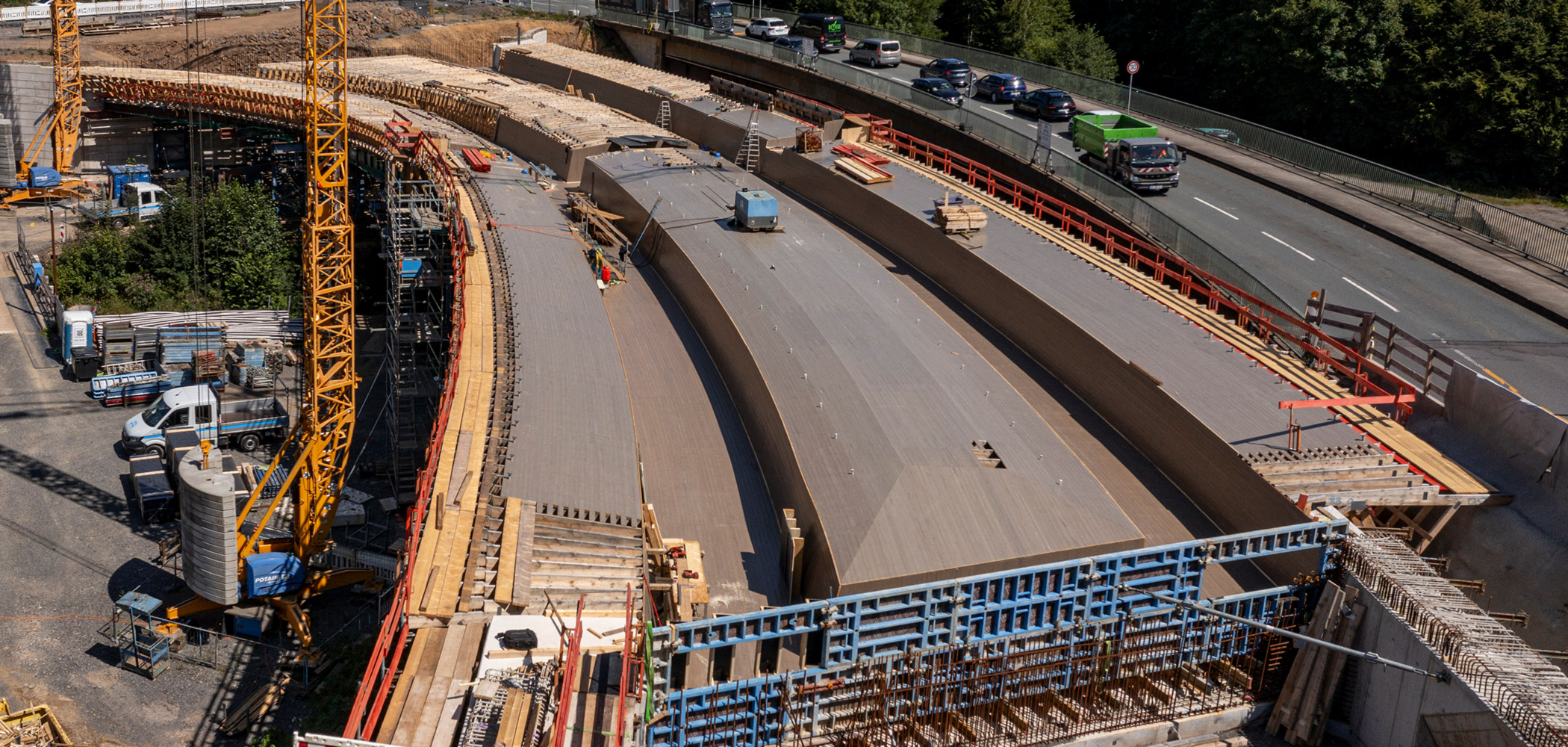

Formwork panels – concrete construction

Ladenburger concrete plywood panels are made of high-quality spruce veneer plywood and a double-sided 400 g/m² phenolic resin film coating for multiple re-uses (5 - 10 uses). Alternatively, we offer Chinese imported shuttering plywood made from poplar veneers for single-use on concrete surfaces without special requirements.

The Chinese film plywood is available in 4 mm, 8 mm and 20 mm thicknesses. The gluing of the shuttering panels is resistant to all weathering and moisture effects.

You can find more information here!

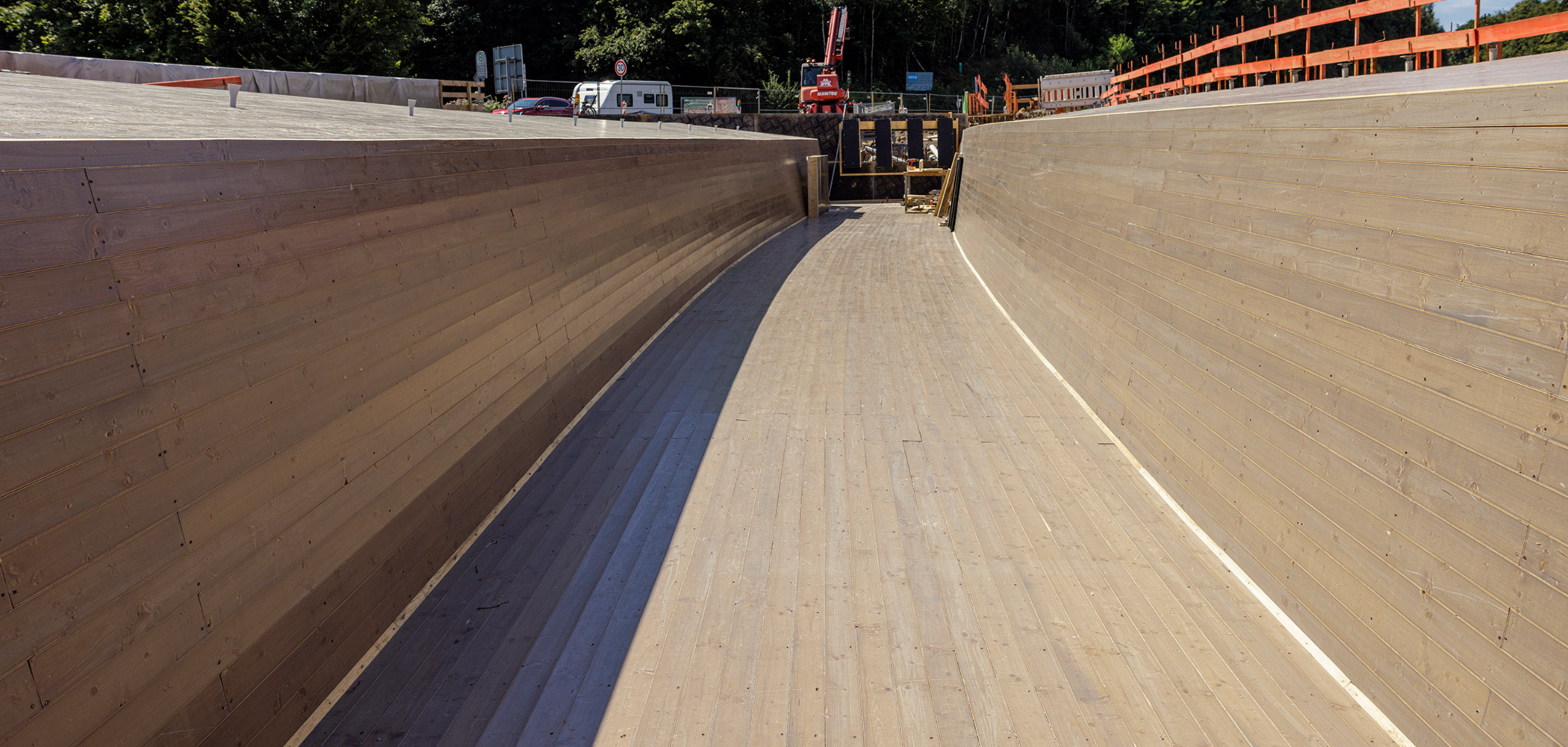

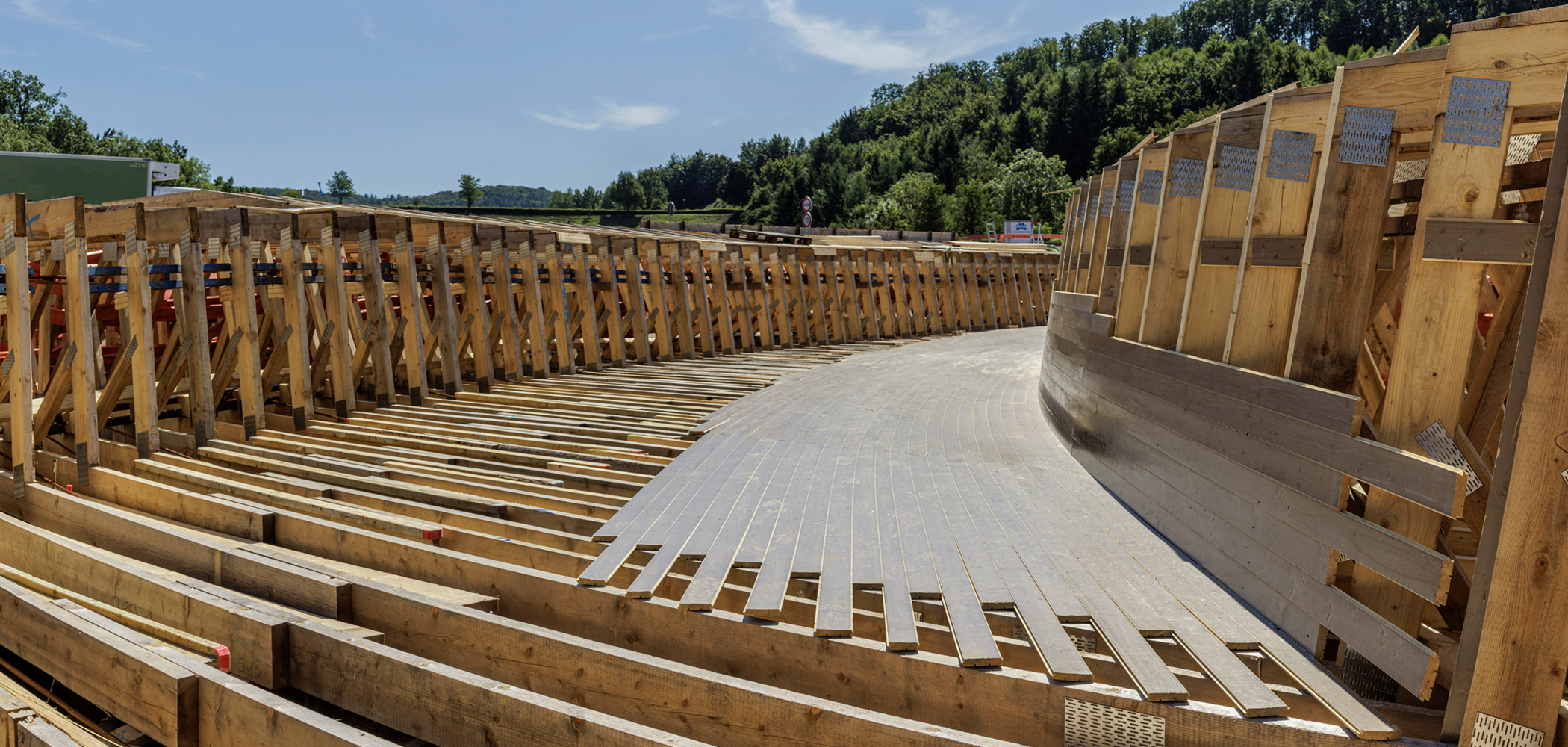

  • Board panel, made of single board formwork in a double wedge groove profile

    Board panel, made of single board formwork in a double wedge groove profile

    • Single board formwork is joined to make a board panel by fastening with brackets on the back

    • Can be made as a flush board panel or with offset

    • Board panel can be produced untreated, whitewashed and waxed or coated with plastic

    • provides tremendous time saving during assembly

    • less fastening material than usual is needed
